BATTERY CHARGERS
INPUT VOLTAGE : 230V AC
OUTPUT RATINGS : 12V DC / 10 AMPS
OUTPUT RATINGS : 24V DC / 10 AMPS
Operating Temperature : 20º to 70ºc
Features
01.Maintain constant voltage through out the line voltage variation
02.High Efficiency

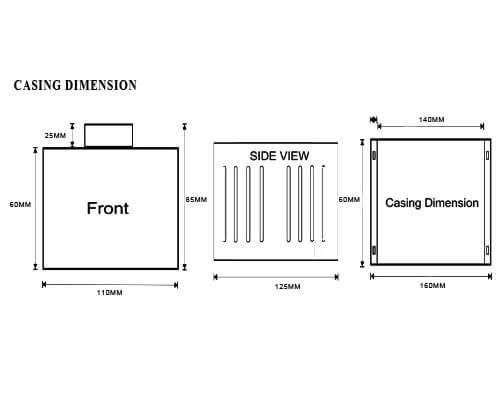

03.Dimension : 140mm(L)*85mm(H)*125mm(D) only for 10 AMPS
Description:
01.Input Voltage Range : Supply voltage should be 180V AC to 260V AC .Green LED is used for POWER ON indication
02.Short Circuit Protection : Our battery charger protects against short circuit, if battery polarity + and – get shorted, Charger and Battery will not get affected.
03.Battery Reverse Protection : If the battery polarity is reversed while connecting with battery charger ,The charger will not get damage. Red LED is used for BATTERY REVERSE indication.
04.Trickle Mode : If battery gets fully charged, it goes on trickle mode.Green LED is used for TRICKLE MODE indication.
05.Boost Mode : While the battery is getting charge, it will be in boost mode.Red LED is used for BOOST MODE indication.
